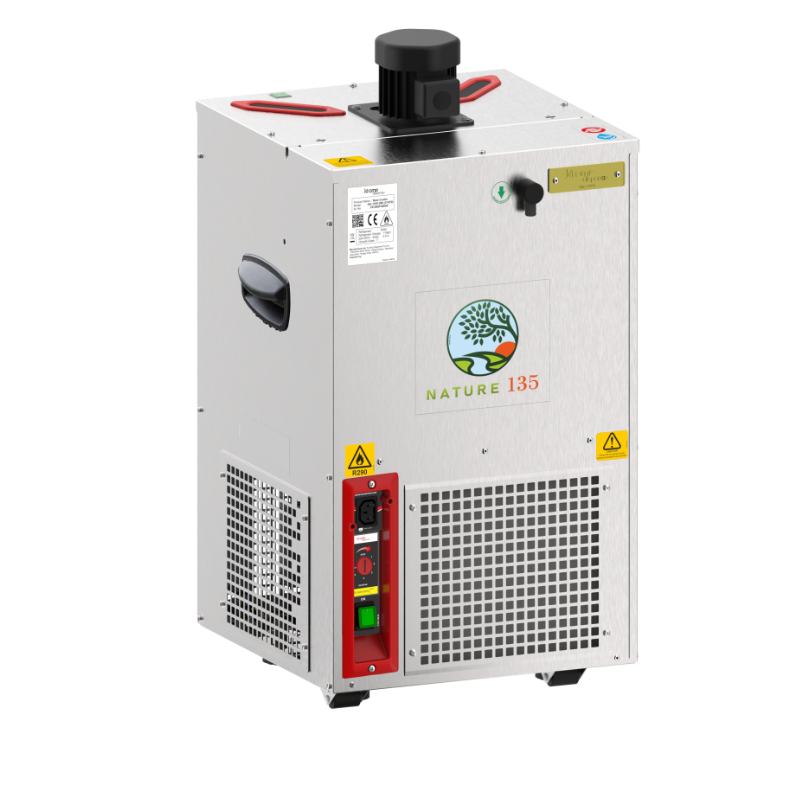

KE-135V-290 High Power Nature Series Beer Cooler – Without Coils – C1672HP
The KE-135V-290 High Power Nature Series Beer Cooler (Without Coils) provides powerful cooling for commercial beer dispensing systems that require multiple beverage lines. The unit uses R290 refrigerant and an integrated ice-bank system to maintain chilled water for beverage cooling.
With a 48-liter water basin, 21 kg ice bank, and 930 W cooling power, the KE-135V-290 supports demanding commercial beverage applications. Its vertical design and casters provide practical mobility while its coil-free configuration allows customers to select and install the appropriate beverage coils for their dispensing requirements.
The cooler supports up to 6 beverage coils, making it suitable for multi-line draft beer installations in breweries, taprooms, bars, restaurants, hotels, and other commercial beverage service environments.
Key Benefits
- High cooling capacity: 930 W cooling power supports demanding commercial dispensing applications.
- Multi-line flexibility: Accommodates up to 6 beverage coils for multi-tap systems.
- Efficient cooling: Ice-bank technology maintains chilled water for beverage cooling.
- Flexible configuration: The coil-free design lets customers select the appropriate coil arrangement for their system.
- Easy mobility: Casters make equipment positioning and relocation more convenient.
- Commercial-ready design: Suitable for breweries, taprooms, bars, restaurants, and hospitality applications.
- R290 refrigeration: Uses R290 refrigerant for the cooling system.
Applications
- Commercial draft beer systems
- Multi-line beer dispensing
- Breweries and taprooms
- Bars and pubs
- Restaurants
- Hotels and hospitality
- Beverage dispensing stations
- High-volume draft beverage installations
- High-power vertical beer cooler
- R290 refrigerant
- Without beverage coils
- Supports up to 6 coils
- 48 L net water basin
- 21 kg ice bank
- 930 W cooling power
- Standard 1-stage 7 m agitator pump
- Compact vertical configuration
- Casters for easy mobility
- Designed for multi-line beverage dispensing
- Mechanical thermostat
- Optional enhanced pump configurations
| Product Type | High Power Vertical Uncovered Beer Cooler |
| Series | Nature Series |
| Application | Beer / Wine / Beverage Cooling |
| Beverage Coils | Without Coils |
| Maximum Number of Coils | Up to 6 |
| Refrigerant | R290 |
| Water Basin | 48 L Net |
| Ice Bank | 21 kg |
| Compressor Nominal Power | 3/8 CV |
| Standard Agitator Pump | 1 Stage – 7 m |
| Cooling Power | 930 W |
| Hourly Peak Performance ΔT20°C | 124 L/h |
| Daily Average Performance ΔT20°C | 40 L/h |
| Maximum Power Absorption | 740 W |
| Average Daily Consumption – Standby | 4.2 kWh |
| Overall Height with Pump | 81 cm |
| Length × Width | 44 × 44 cm |
| Net Empty Weight | 41 kg |
| Electrical Supply | 220–240V AC 50/60 Hz / 115V 50/60 Hz |
| Thermostat | Mechanical |
| Coil Options | Up to 6 |
| Coil Diameter Options: | 5×6, 7×8, 10×11 mm |
| Coil Inlet/Outlet | Tube Cut / JG Speedfit Optional |
| Enhanced Pump | 2 Stage – 12 m / 3 Stage – 18 m |
| Mobility | Casters |
