Robust under-counter beer cooler built for hot/tropical environments. Stainless-steel body, copper evaporator, Embraco compressor, and flexible 1–7 coil configurations for bars, pubs and outdoor service areas.
Krome — Vertical Under-Counter Beer Cooler with one coil – 145 litres – Nature Tropical Series
SKU: C1685X1
Sign in to view Price
Resources and Downloads
- Details
- Features
- Specifications

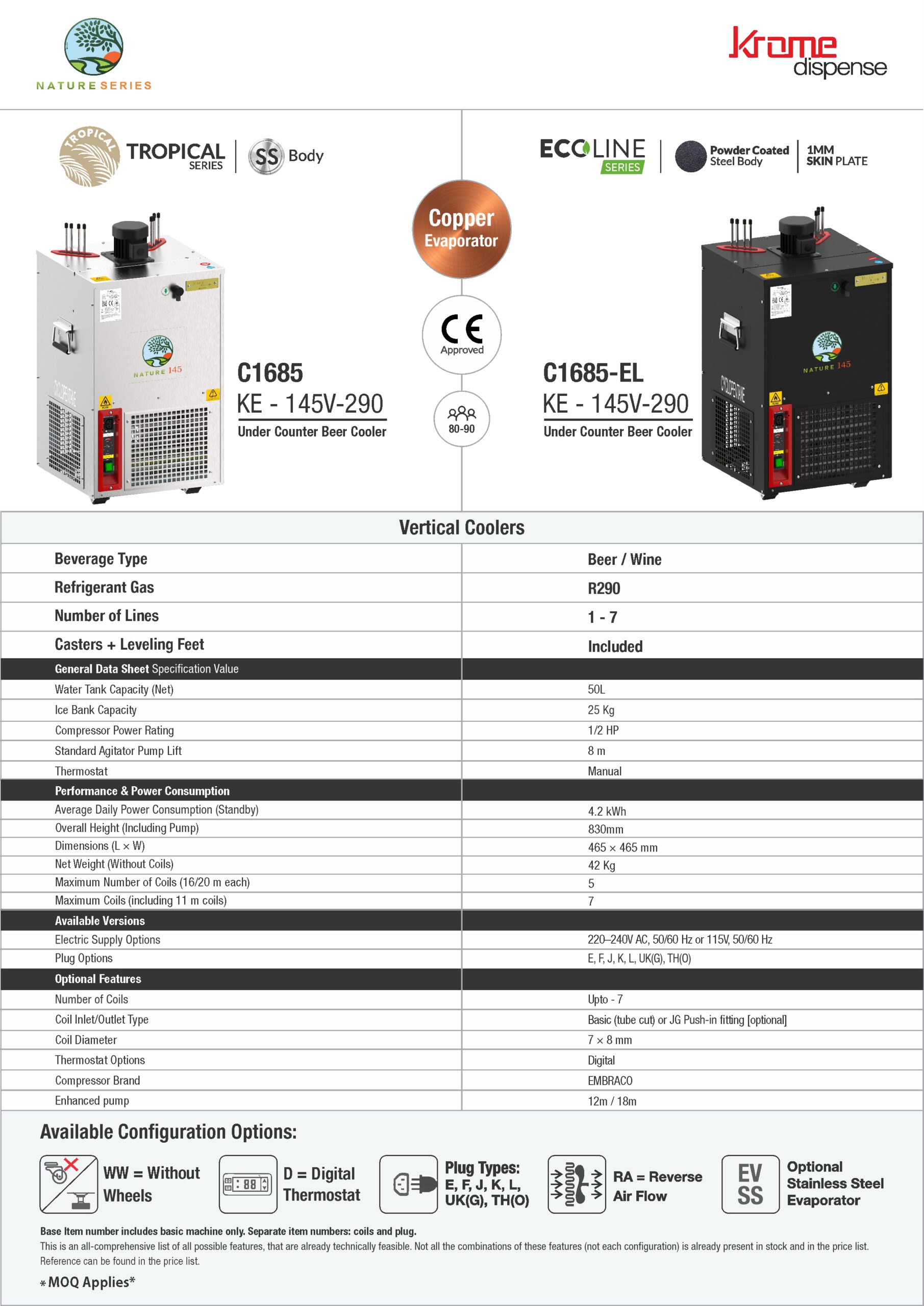

The Krome C1685 (Tropical Series) is engineered for consistent draft performance in demanding, high-ambient environments. Its corrosion-resistant stainless-steel body and high-efficiency copper evaporator deliver rapid heat transfer and long service life — ideal for open bars, beach resorts and busy food & beverage outlets. The unit supports 1 to 7 coil configurations so you can scale from a single beer line to a multi-tap set up. Powered by a reliable Embraco compressor and using eco-friendly R290 refrigerant, the C1685 balances performance with lower environmental impact. Compact (465 × 465 × 830 mm) and CE-approved, it offers manual or optional digital thermostat control, multiple plug options, optional stainless steel evaporator, and accessories like reverse airflow and enhanced pump lifts. Choose C1685 when you need rugged durability, tropical reliability, and a professional dispensing solution.
Key features
-
Stainless-steel exterior — corrosion resistant for tropical climates
-
Copper evaporator for fast, even cooling
-
Available in 1–7 coil variants (choose per tap count)
-
R290 refrigerant (eco-friendly)
-
Embraco compressor (½ HP)
-
Manual or digital thermostat options
-
Compact under-counter footprint — 465 × 465 × 830 mm
-
CE approved; multiple plug types available
-
Optional upgrades: stainless steel evaporator, reverse airflow, higher pump lift
| Beverage Type | Beer/Wine |
| Refrigerant Gas | R290 |
| Number of coils | 1 |
| Water Tank Capacity | 50L |
| Ice Bank | 25KG |
| Compressor Power | 1/2HP |
| Thermostate | Manual |
| Power Supply | 220-240V Ac, 50/60 Hz or 115V, 50/60 Hz |
| Power Consumption | 4.2kWh (Average daily power consumption standby) |
| Height | 830mm (Including Pump) |
| Length | 465 mm |
| Width | 465 mm |
| Net Weight | 42kg (Without Coils) |
| Maximum Coil | (16/20 m each) 5, Maximum Coils(Including 11 m coils 7 ) |
| Plug Options | E, F, J, K, L, UK(G), TH(O) |
| Coil Diameter | 7 X 8 mm |
| Material | Stainless Steel |
