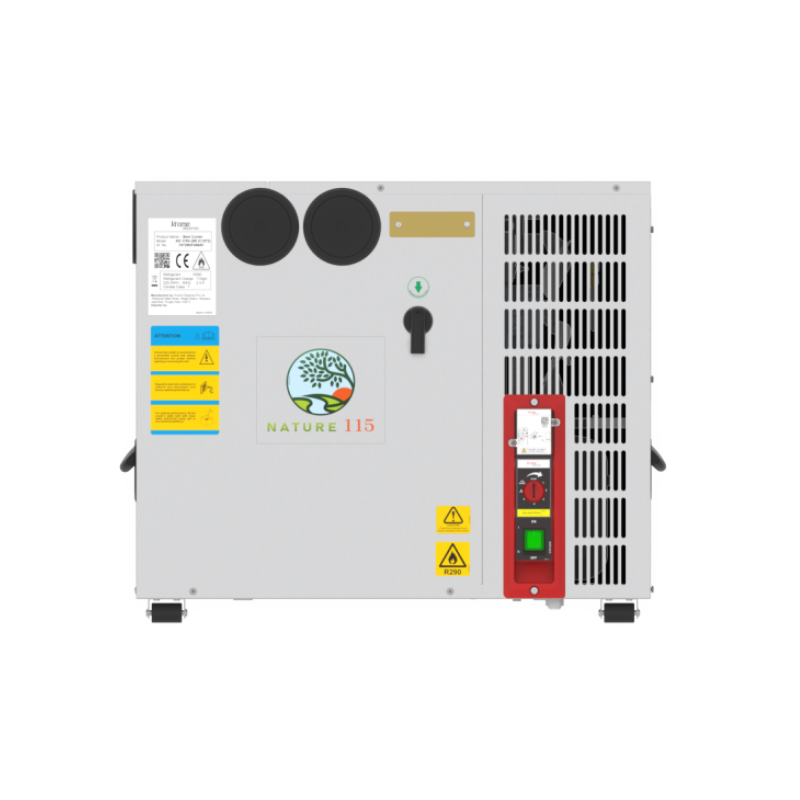

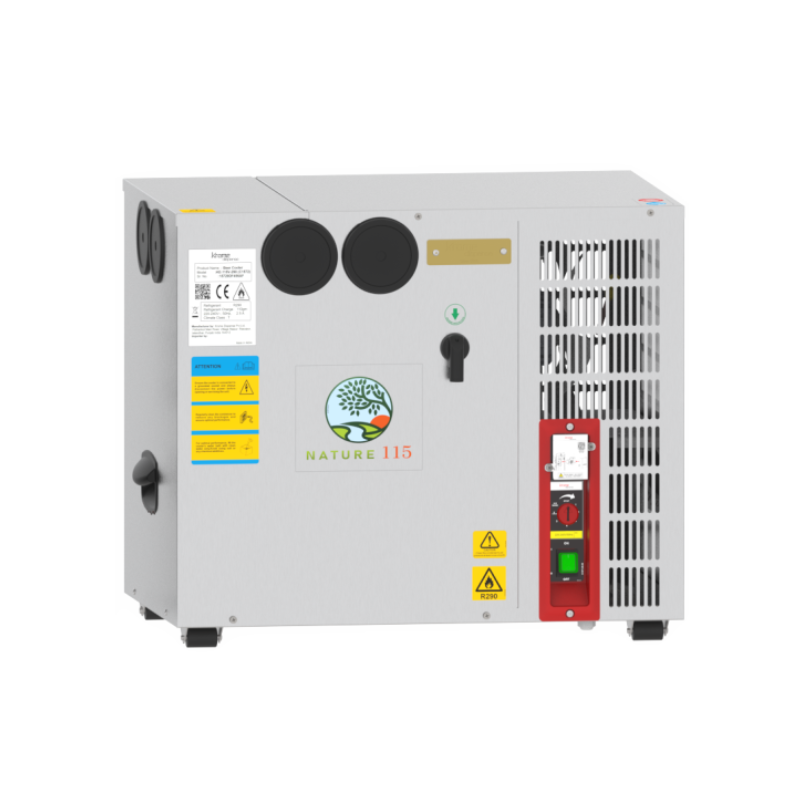

KE-115H-290 Nature Series Beer Cooler – Without Coils

SKU: C1568

Sign in to view Price

KE-115H-290 Nature Series Beer Cooler – Without Coils – C1568

The KE-115H-290 Nature Series Beer Cooler (Without Coils) provides reliable cooling for commercial draft beer and beverage dispensing systems that require a compact horizontal configuration. The unit uses R290 refrigerant and ice-bank cooling technology to maintain chilled water for beverage cooling.

The cooler features a 32-liter water basin, 12 kg ice bank, and 630 W cooling power, making it suitable for demanding commercial beverage applications. Its coil-free configuration allows customers to select the appropriate beverage coils based on their dispensing requirements.

The KE-115H-290 supports up to 4 beverage coils, providing flexibility for multi-line draft installations in breweries, taprooms, bars, restaurants, hotels, pubs, and other commercial beverage service environments.

Key Benefits

  • Efficient cooling: 630 W cooling power supports commercial draft beverage applications.
  • Up to 4 coils: Provides flexibility for multi-line beer dispensing systems.
  • Ice-bank cooling: The 12 kg ice bank helps maintain chilled water for beverage cooling.
  • Flexible configuration: The coil-free design lets customers choose the appropriate beverage coil arrangement.
  • Space-efficient design: The horizontal format works well where vertical space remains limited.
  • Easy mobility: Casters simplify positioning and movement within commercial beverage areas.
  • R290 refrigeration: Uses R290 refrigerant within the cooling system.

Applications

  • Commercial draft beer systems
  • Multi-line beer dispensing
  • Breweries and taprooms
  • Bars and pubs
  • Restaurants
  • Hotels and hospitality
  • Beverage dispensing stations
  • Commercial beverage cooling installations
  • Nature Series horizontal beer cooler
  • R290 refrigerant
  • Supplied without beverage coils
  • Supports up to 4 beverage coils
  • 32 L net water basin
  • 12 kg ice bank
  • 630 W cooling power
  • Standard 1-stage 5.8 m agitator pump
  • Mechanical thermostat
  • Compact horizontal configuration
  • Casters for easy mobility
  • Designed for commercial multi-line dispensing
  • Optional enhanced pump configurations
Product TypeNature Series Horizontal Beer Cooler
ConfigurationHorizontal
ApplicationBeer / Wine / Beverage Cooling
Beverage CoilsWithout Coils
Maximum Number of CoilsUp to 4
RefrigerantR290
Water Basin32 L Net
Ice Bank12 kg
Compressor Nominal Power1/4 CV
Standard Agitator Pump1 Stage – 5.8 m
Cooling Power630 W
Hourly Peak Performance ΔT20°C77 L/h
Daily Average Performance ΔT20°C27 L/h
Maximum Power Absorption520 W
Average Daily Consumption – Standby3.9 kWh
Overall Height with Pump54 cm
Length × Width60 × 38 cm
Net Empty Weight37 kg
Electrical Supply220–240V AC 50/60 Hz / 115V 50/60 Hz
ThermostatMechanical
Coil ConfigurationUp to 4 coils
Coil Diameter Options:5×6, 7×8, 10×11 mm
Coil Inlet/OutletTube Cut / JG Speedfit Optional
Enhanced Pump1 Stage – 7.0 m / 2 Stage – 12 m
MobilityCasters
