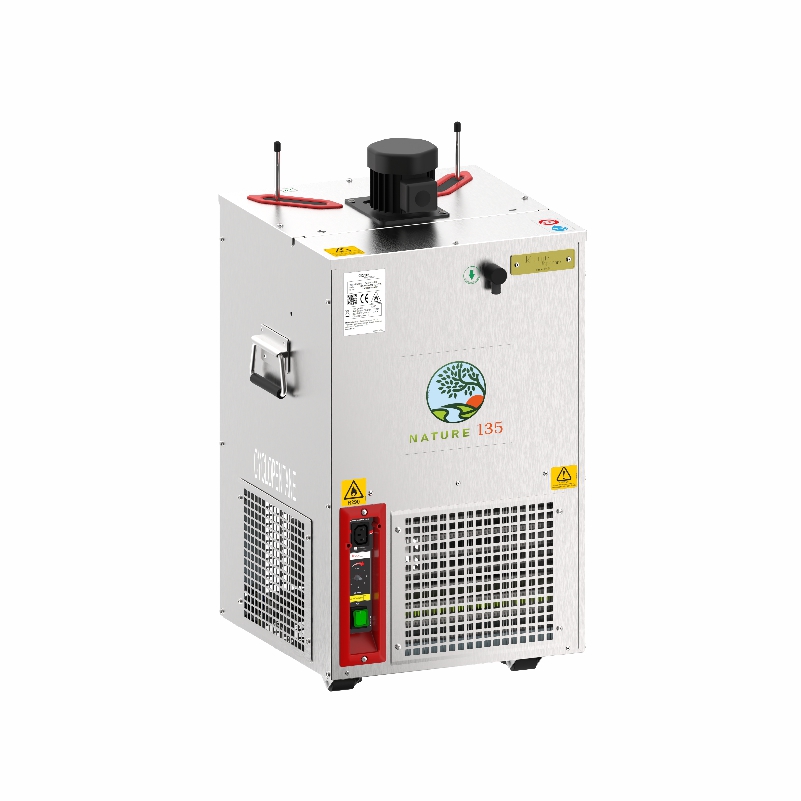

Krome Nature Tropical Series 135 – Under Counter Beer Cooler C1672

SKU: C1672

Krome Nature 135 is an under counter ice bank beer cooler for 1 to 8 beer lines. It uses eco-friendly R290 refrigerant, a copper evaporator and an Embraco compressor. It has a 50 L water tank and a 25 kg ice bank, and delivers 135 litres per hour. It is available in two versions:

Part # C1672

Pricing & availability provided on request. Our team typically replies within one business day.

Global supplyIndia + USA warehouses
Expert technical supportSpecs, drawings & install help
NSF-certified qualityCommercial, food-safe standards
After-sales supportReplacement parts & service

How the Nature 135 Beer Cooler Works

  • The cooler forms an ice bank (25 kg) inside a 50 L water tank. This takes approx. 2 hours.
  • Beer flows through cooling coils placed in the chilled water, so it is cooled on its way to the tap.
  • An agitator pump keeps the water moving for consistent cooling (8 m standard pump lift; 12 m / 18 m enhanced pump options available for longer dispensing distances).
  • Dispensing capacity: 135 litres per hour, suitable for continuous multi-line dispensing.

How to Use

  1. Position the cooler: Place it under the counter. Castors and levelling feet are included for easy movement and stable placement.
  2. Fit the cooling coils: Install one coil per beer line (up to 8 coils supported).
  3. Connect the beer lines: Connect your beer line / tubing to the coil inlet and outlet. Basic tube cut is standard; JG push-in fittings are optional.
  4. Connect power: Use the correct plug type and supply (220–240 V AC or 115 V, 50/60 Hz).
  5. Switch on and wait for the ice bank: Allow approx. 2 hours for the ice bank to form before dispensing.
  6. Dispense: Connect your keg to the beer line and serve through your tower or tap.

What You Need for a Complete Setup

  • Beer cooling coils: Sold separately. One coil per beer line.
  • Power plug: Sold separately. Available types: E, F, J, K, L, UK(G), TH(O).
  • Keg coupler: To connect each keg to the beer line (must match your keg type).
  • CO2 cylinder and regulator: To push beer from the keg to the tap.
  • Beer tower / taps (faucets): The dispensing point on your bar counter.
  • Beer line / python tubing: To carry beer from the cooler to the tower.
  • JG push-in fittings: For quick and convenient line connections (optional).
  • Drip tray: To collect spillage below the taps.

Available from Krome Dispense

Good to Know Before You Order

  • Two versions available: C1672 (SS304 body, Tropical Series) and C1672-EL (powder coated steel body, Ecoline Series).
  • The base item includes the basic machine only. Coils and plug have separate item numbers.
  • Optional configurations: without wheels, digital thermostat, reverse air flow, stainless steel evaporator, enhanced pump (12 m / 18 m).
  • Voltage options: 220–240 V AC or 115 V, 50/60 Hz. Amperage and voltage can be adjusted for your country.
  • MOQ applies.
  • Compact size: 465 × 465 × 830 mm, net weight 42 kg (without coils).
  • Backed by a 2 years limited warranty.
  • Not every feature combination is in stock. Contact us to confirm availability.

Ideal For

  • Bars, restaurants and beverage service areas
  • Multi-line beer and wine dispensing (1 to 8 lines)
  • Under counter installations where space is limited

Need Help Choosing?

  • US & Canada: +1-678 666 2001
  • Asia: +91-9814203010

Features

  • Suitable for 1 to 8 beer lines (multi-line dispensing)
  • Application: Beer / Wine
  • Eco-friendly R290 refrigerant
  • Copper evaporator for efficient heat transfer and rapid cooling
  • 50 L water tank with 25 kg ice bank
  • Beer dispensing capacity: 135 LPH
  • 1/3+ HP Embraco compressor
  • Supports up to 8 cooling coils
  • Fast ice bank formation (approx. 2 hours)
  • 8 m standard agitator pump lift
  • 12 m / 18 m enhanced pump options available
  • Average daily standby power consumption: 4.2 kWh
  • Casters and levelling feet included
  • JG push-in fitting option for line connections
  • Compact under counter design for bars, restaurants and beverage service areas
  • CE approved
Warranty2 Year Limited
ApplicationBeer/Wine
Number Of Lines1-8
Water Tank Capacity50 L
Ice Bank Capacity25 kg
Beer Dispensing Capacity135 LPH
RefrigerantR290
Compressor1/3+HP
ThermostatManual/Digital Optional
Maximum Number of Coils8
Coil Inlet/OutletBasic Tube Cut/ JG Push-In Fitting Optional
Standard Agitator Pump Lift8 m
Overall Dimensions(LXWXH)465X465X830 mm
Net Weight (Without Coil)42 kg
Electrical Supply220-240 V AC, 50/60 Hz ya 115 V, 50/60 Hz
Body MaterialSS304 / Powder-Coated Steel
To connect Beer line hoses or Python tubing to stainless steel Beer inlet and outlet you require a krome part# c097 or John guest Push-in fitting
PDF · 4 MB

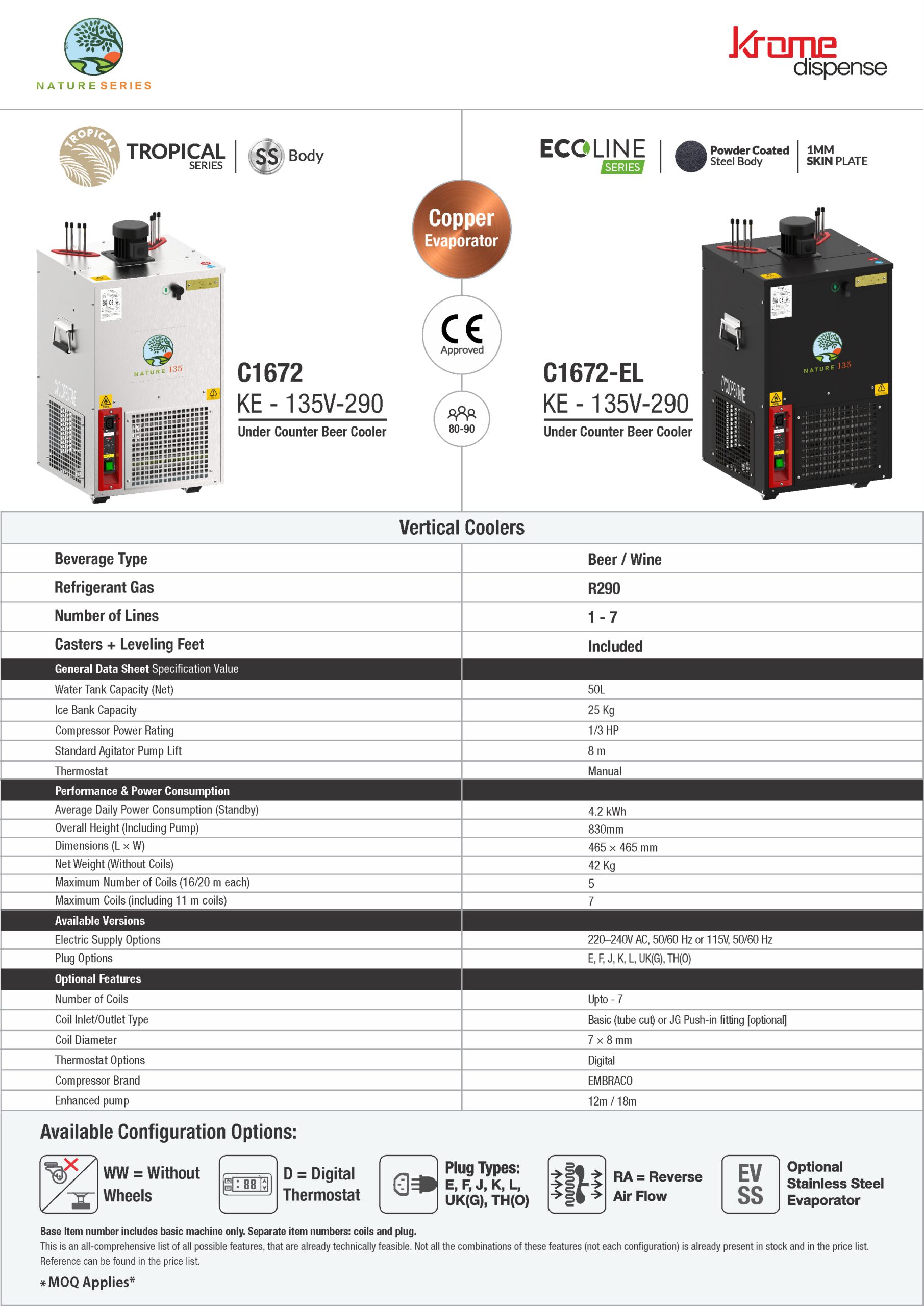

Technical Specification

View / Download →
PDF · 345 KB

Exploded View

View / Download →
