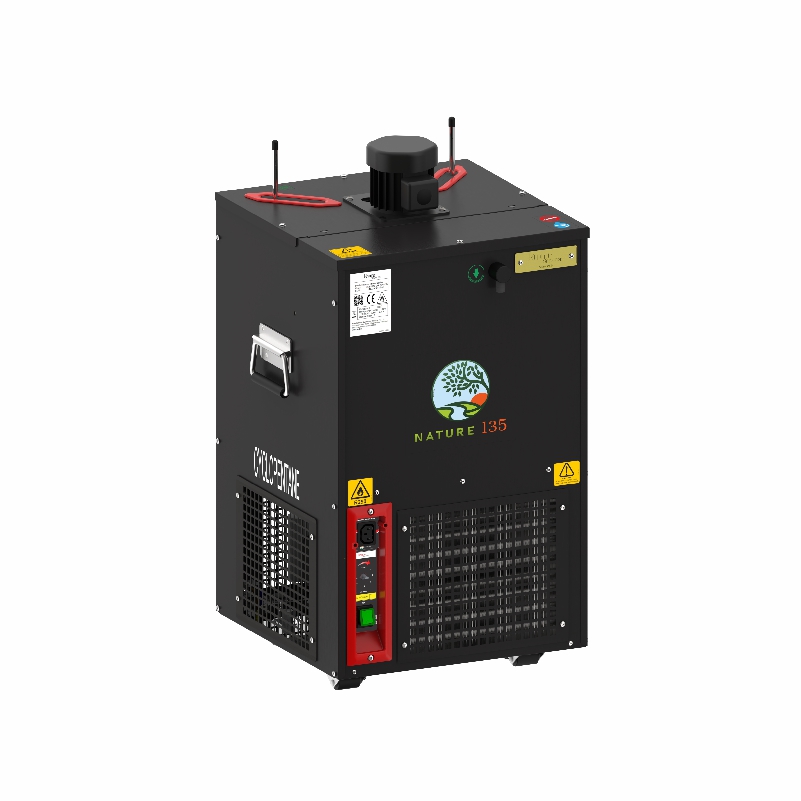

How the Nature 135 (C1672-EL) Beer Cooler Works

• The cooler forms an ice bank (25 kg) inside a 50 L water tank. This takes approx. 2 hours.
• Beer flows through cooling coils placed in the chilled water, so it is cooled on its way to the tap.
• An agitator pump keeps the water moving for consistent cooling (8 m standard pump lift; 12 m / 18 m enhanced pump options available for longer dispensing distances).
• Dispensing capacity: 135 litres per hour, suitable for continuous multi-line dispensing.

How to Use

1. Position the cooler: Place it under the counter. Castors and levelling feet are included for easy movement and stable placement.
2. Fit the cooling coils: Install one coil per beer line (up to 8 coils supported).
3. Connect the beer lines: Connect your beer line / tubing to the coil inlet and outlet. Basic tube cut is standard; JG push-in fittings are optional.
4. Connect power: Use the correct plug type and supply (220-240 V AC or 115 V, 50/60 Hz).
5. Switch on and wait for the ice bank: Allow approx. 2 hours for the ice bank to form before dispensing.
6. Dispense: Connect your keg to the beer line and serve through your tower or tap.

What You Need for a Complete Setup

• Beer cooling coils: Sold separately. One coil per beer line.
• Power plug: Sold separately. Available types: E, F, J, K, L, UK(G), TH(O).
• Keg coupler: To connect each keg to the beer line (must match your keg type).
• CO2 cylinder and regulator: To push beer from the keg to the tap.
• Beer tower / taps (faucets): The dispensing point on your bar counter.
• Beer line / python tubing: To carry beer from the cooler to the tower.
• JG push-in fittings: For quick and convenient line connections (optional).
• Drip tray: To collect spillage below the taps.

Available from Krome Dispense

• Keg couplers:
• Beer towers:
• Drip trays:
• Beer line / python tubing:
• JG push-in fittings:
• Regulator

Good to Know Before You Order

• This is the C1672-EL version: Ecoline Series, powder coated steel body (1 mm skin plate). The SS304 body version is C1672 (Tropical Series).
• The base item includes the basic machine only. Coils and plug have separate item numbers.
• Optional configurations: without wheels, digital thermostat, reverse air flow, stainless steel evaporator, enhanced pump (12 m / 18 m).
• Voltage options: 220-240 V AC or 115 V, 50/60 Hz. Amperage and voltage can be adjusted for your country.
• MOQ applies.
• Compact size: 465 x 465 x 830 mm, net weight 42 kg (without coils).
• Backed by a 2 years limited warranty.
• Not every feature combination is in stock. Contact us to confirm availability.

Ideal For

• Bars, restaurants and beverage service areas
• Multi-line beer and wine dispensing (1 to 8 lines)
• Under counter installations where space is limited
