Inline secondary CO2 regulator with 3/8″ barb outlet. Delivers 0–60 PSI output with 55–65 PSI pressure relief. Ideal for multi-keg draft beer systems

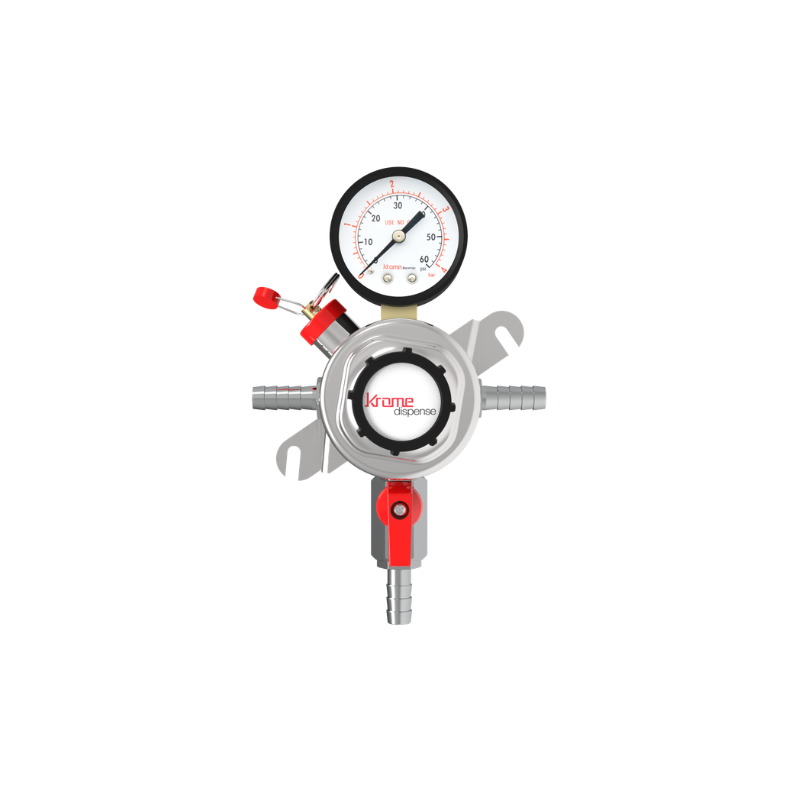

Precision Plus – Secondary CO2 Regulator with Gauge – 0–60 PSI – PRV 55–65 PSI – 5/16″ O.D. Outlet Barb
SKU: C3871
Sign in to view Price
Resources and Downloads
- Details
- Features
- Specifications
- Replacement Parts
Secondary Precision Plus Inline CO2 Regulator with 1 Outlet -1 Gauge-wall mount- C3871
Krome Dispense is dedicated to manufacturing the highest quality gas equipment in the industry. Our new Secondary Precision Plus regulator has some industry features, making it a better-performing, higher-quality, and more-tested regulator. Our Precision Plus Co2 Regulator comes with 1 outlet.
Control the CO2 flow to a single keg in your draft beer system safely and effectively. Secondary gas regulators apply a lower pressure to each individual keg after lowering the pressure applied by a primary regulator or gas mixer. You may rapidly check the amount of gas flowing from the gas source to the keg with the help of the secondary regulator’s single gauge, which has an adjustment range from 0 to 60 PSI.
This model has an inbuilt pressure relief valve that shuts off the gas flow if the pressure rises too much (55–65 PSI) for increased safety. A tamper-evident adjustment screw and bonnet are included as standard equipment with Premium Plus regulators, preventing illegal adjustments to the gas pressure that may result in servicing problems.
Other Option Available:
| Sr. no | Part no | Name |
| 1 | C3871 | Secondary Precision Plus Inline CO2 Regulator with 1 Outlet -1 Gauge-wall mount |
| 2 | C3872 | Precision Plus Co2 Secondary Regulator Inline – 0-60 PSI – 2 Gauge – 2 Way |
| 3 | C3873 | Precision Plus co2 Secondary Regulator Inline – 0-60 PSI – 3 Gauge – 3 Way |
| 4 | C3874 | Precision Plus Co2 Secondary Regulator Inline – 0-60 PSI – 4 Gauge – 4 Way |
- Set the pressure between 0 and 60 PSI.
- Forged brass body, precise machining, chrome-plated finish; built to last.
- Metal gauges of superior quality and endurance
- Modification-proof adjustment screw and bonnet
- valve seats with nickel plating for improved corrosion resistance
- An expanded CO2 port for high volume safety relief valves that release at 55 to 65 PSI have passed factory leak tests at 145 PSI.
| Series | Precision Plus |
| Includes | Threaded Plug |
| Outlet Gauge Pressure | 0-60 PSI |
| Outlet Barb | 5/16" |
| Installation | Wall mount, bracket included |
| Pressure Relief Valve | 55-65 PSI |
| Perfomance | 1 Pressure 1 Product |
| Inlet | 5/16" |
